Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Kim loại: | uốn ống kim loại | ống tròn/sắt: | 90x2,5mm |
|---|---|---|---|
| Ống tròn/ống thép không gỉ: | 89x2.0mm |

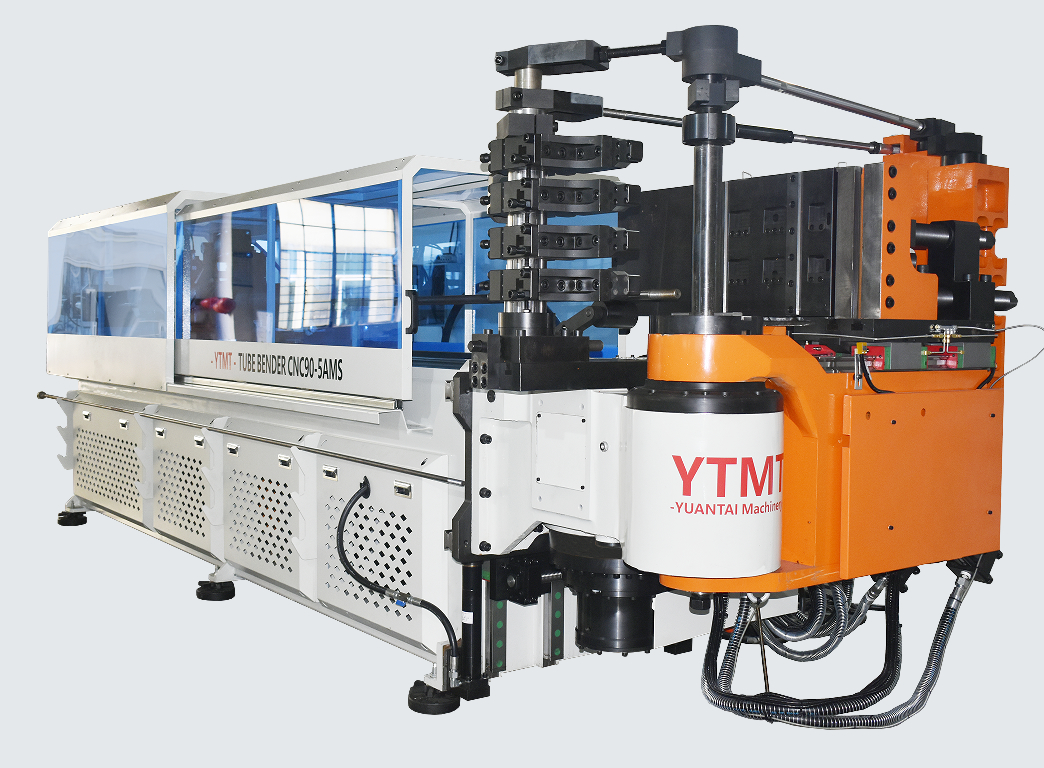

CNC90-5AMS
3D CNC automatic pipe bender
5 Axis and multi stacks
With rear booster
Technical parameter
CNC90-5AMS 3DCNC automatic pipe bender parameter
|
Maxi bending capacity |
Φ90×2.5 t | |
|
Max. mandrel length |
4000mm | |
|
Max. feeding stroke |
3000mm | |
|
Feeding way |
Directly or feeding repeatly |
|
|
Max. bending radius |
255mm | |
|
Max. bending degree |
190° | |
|
Capacity bends for each tube |
100弯 100 bends |
|
|
Working speed |
Bending |
Max 65°/S |
|
Rotation |
Max. 220°/ S |
|
|
Feeding |
Max. 700mm/s |
|
| precision |
Bending |
±0.05° |
|
Rotation |
±0.05° | |
|
Feeding |
±0.05mm | |
|
Data input mode |
(XYZ) or(Y.B.C) or STP3D input | |
|
|
||
|
|
||
|
Machine weight |
8250kg | |
| Machine size L.W.H(mm) | 6800×1900×1650 | |
CNC90-5AMS CNC pipe bender purchasing part
|
part description
|
Brand |
|
Control PLC |
(MITSUBISHI) |
|
15 Inches IPC control panel |
Advantech / Taiwan |
|
Low voltage pressure |
Schneider / FRANCE |
|
Feeding motor |
MITSUBISHI |
|
Feeding |
MITSUBISHI |
|
Rotation |
MITSUBISHI |
|
Rotation servo driver |
MITSUBISHI |
|
Oil pressure electric valve |
7 Ocean or YUKEN |
|
The micro switch |
OMRON/日本 |
|
Proximity switch |
OMRON/日本 |
|
Oil pressure pump |
YUKEN OR HYTEK |
|
I/O INPUT OUTPUT PLATE |
SELF MADE |
|
Linear guide and ball screw |
HINWIN/TAIWAN |
|
High speed Bearing |
NSK |
|
Seal elements |
DINGJI / Taiwan |
|
RV Reducer |
MURATA / TAIWAN or same level |
|
Oil tube |
Lianhui/China |
|
Reducer (feeding & rotation) |
LIMING or Sainade / TAIWAN |
Người liên hệ: Mr. Eric
Tel: +86 15872422495
